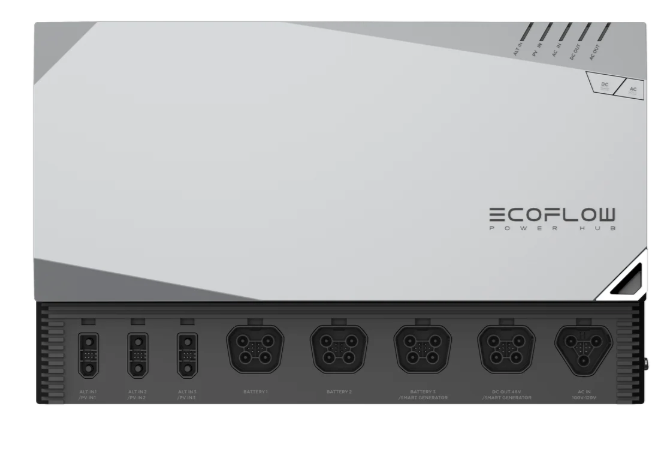

EcoFlow 5 kVA Power Hub (With Cables)
$4,075.00
Skip to product information

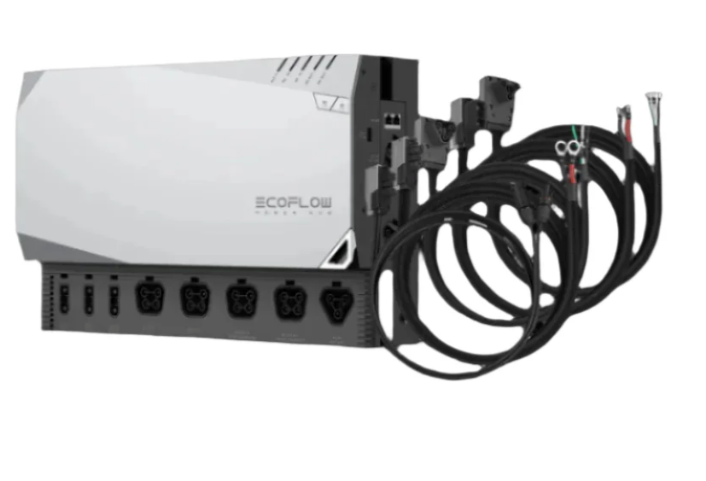

EcoFlow 5 kVA Power Hub (With Cables)
$4,075.00
The hassle-free, high-powered EcoFlow 5kVA Power Hub is the newest version of EcoFlow's integrated, plug-and-play 48V off-grid power solution designed for camper vans, motor homes, trailers and RVs of any kind.
This 5kVA Power Hub includes:
- 5 kVA Power Hub (with cables)
- 5 kVA Power Hub AC Charge Cable (4.5m)
- 5 kVA Power Hub Alternator Charge Cable (6m)
- 5 kVA Power Hub DC Main Out Cable (4.5m)
- 5 kVA Power Hub AC Main Out Cable (4.5m)
- 5 kVA Power Hub Solar Charge Cable (6m)
- 2x T568B Communication Cables
- Installation/Mounting Hardware.
Battery cables and battery mounting hardware/straps are sold separately and included with the purchase of an EcoFlow 2kWh or 5kWh LFP battery.
Key Features: EcoFlow 5kVA Power Hub (With Cables)
- Supports up to 11 kW of charging from a combination of 4 charging methods: up to 4800W solar, 6000W alternator, 4000W shore power, and 3200W Smart Generator input.
- Plug-and-play for simple assembly
- Mix and match: 2 kWh and 5 kWh batteries(sold separately)
- The 5-in-one Power Hub incorporates the features of a DC/DC charger, DC/DC converter, 2 MPPT charge controllers, and an AC/DC inverter.
- Supports any 120VAC RV air conditioner, some 12VDC A/Cs, many 24VDC A/Cs, and any 48VDC RV air conditioner (with use of the 48V A/C cable)
- Expandable to 45 kWh battery storage with the use of 3x EcoFlow Power Docks(sold separately)
- 48V system, a safer, smaller power solution
- Real-time and remote smart controls through the EcoFlow PowerInsight or Power Kit Console displays, and the EcoFlow app
- Made in China
- 5-year warranty
Free Shipping on orders $150 and up
Specifications: EcoFlow 5 kVA Power Kits - 30A RV Kit
5 kVA Power Hub - Gen 2
|
Dimensions (in) |
480x140x300mm(18.9x5.5x11.8in) |
|
Testing & Certifications |
CE, UL, FCC |
|
Wi-Fi |
2.4G, 5G Supported |
|
Bluetooth |
5.0 Supported |
|
OUTPUT |
|
|
AC Output(Discharge only) |
120V - 4000W, 5000VA, 60Hz (Surge 10kVA, 100ms) |
|
AC Output(Bypass Mode) |
Low Voltage: 100-120V ~ 50A Max, 50/60Hz High Voltage: 220-240V ~ 50A Max, 50/60Hz |
|
DC Main Output |
13.6V - 100A, 1300W Max 26.4V - 60A, 1600W Max |
|
INPUT |
|
|
X-Fusion(Power Assist) |
50A, 5000VA Max |
|
AC Main Input Voltage/frequency |
100-120V, 50Hz/60Hz |
|
Solar Charging Input |
Port 1: 13-60V 100A, 4000W max Port 2/3: 13-60V 30A, 1600W max |
|
Alternator Charging Input |
13V-60V, 60A/30A/30A, up to 4800W total |
|
TEMPERATURE |
|
|
Best Operating Temperature |
68°F-86°F(20°C - 30°C) |
|
Discharge Temperature |
-13°F-140°F(-25°C to 60°C) |
|
Charge Temperature |
-13°F-140°F(-25°C to 60°C) |
|
Storage Temperature |
-13°F-140°F(-25°C to 60°C) |
|
Net Weight |
34 lbs(15.5kg) |
