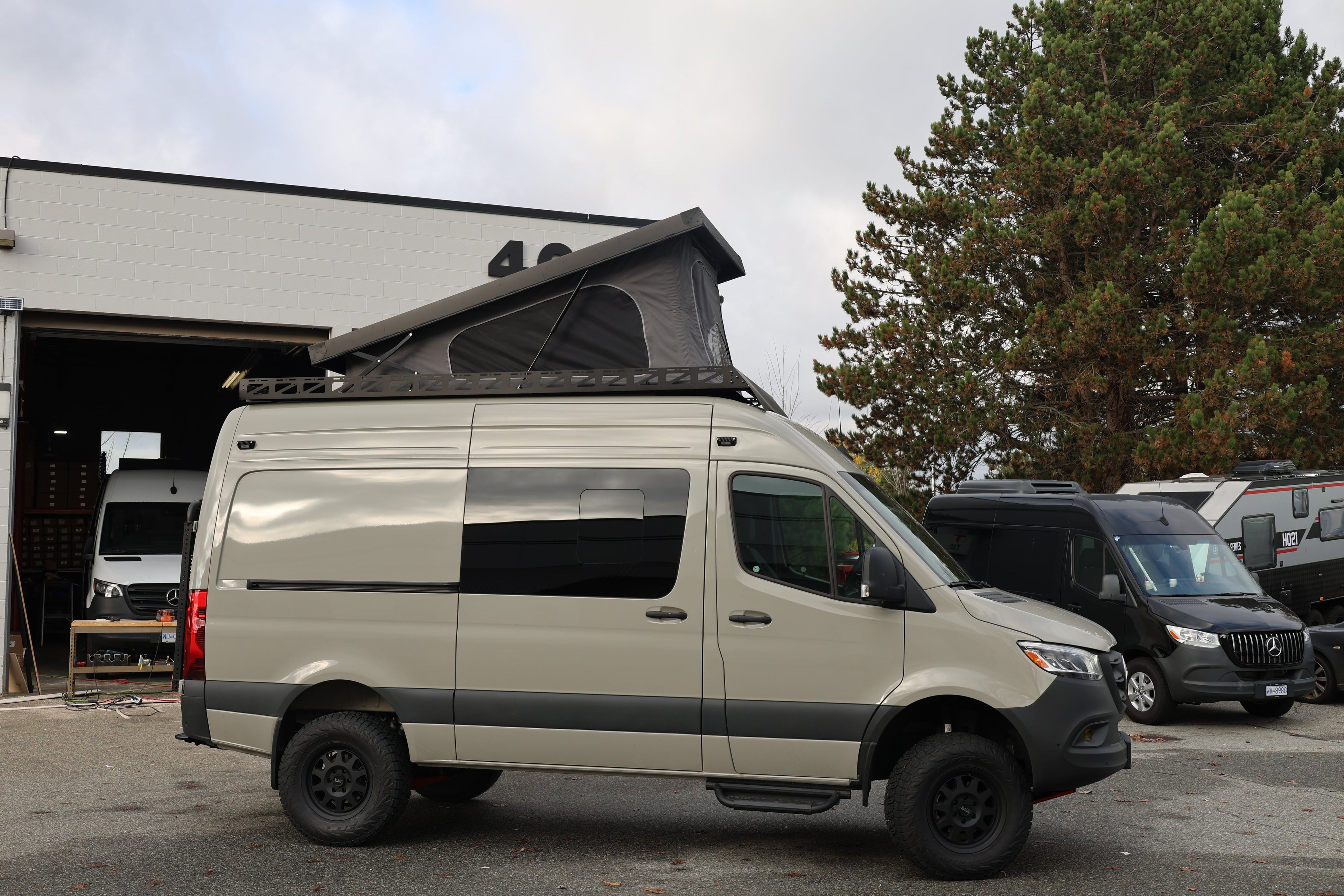

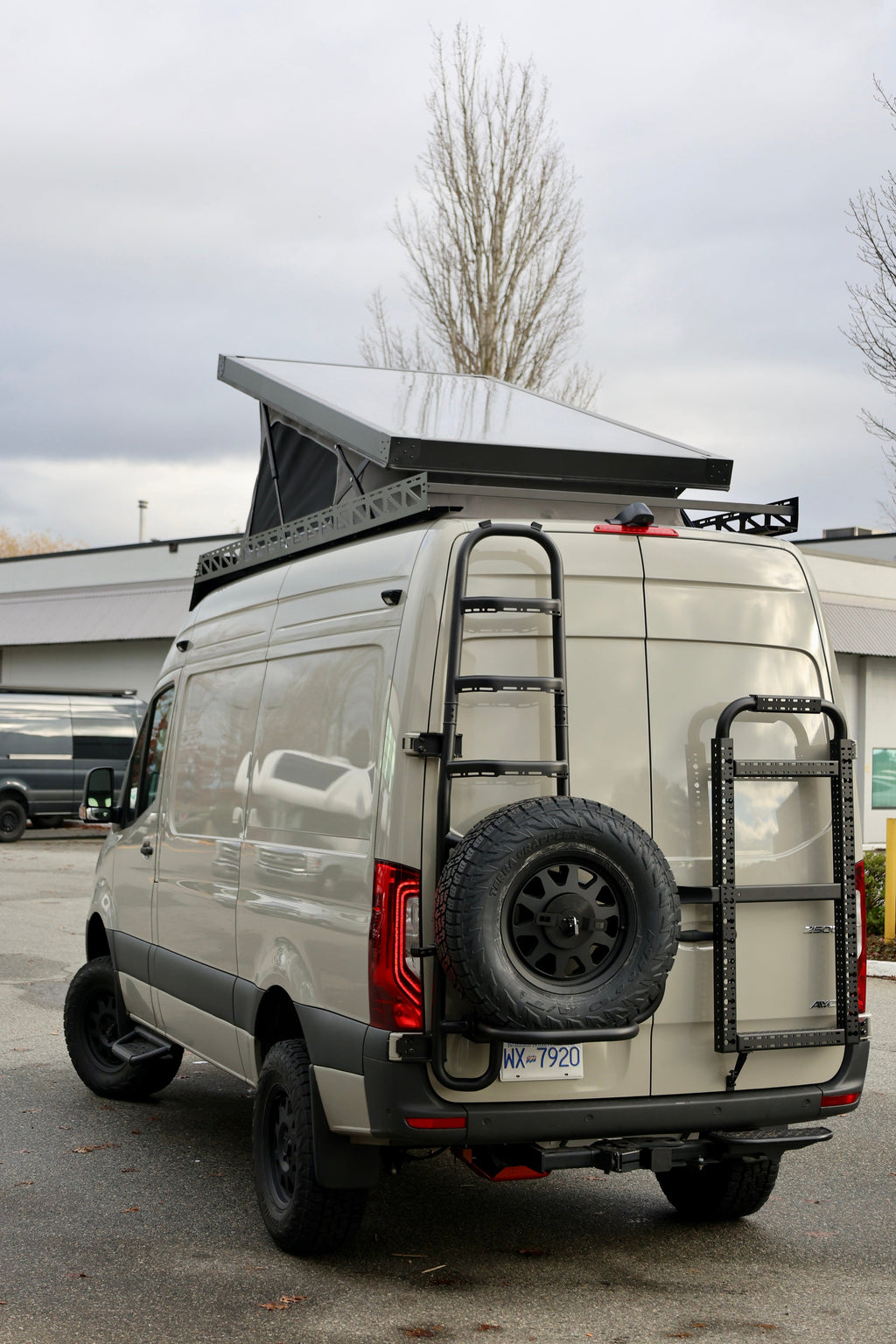

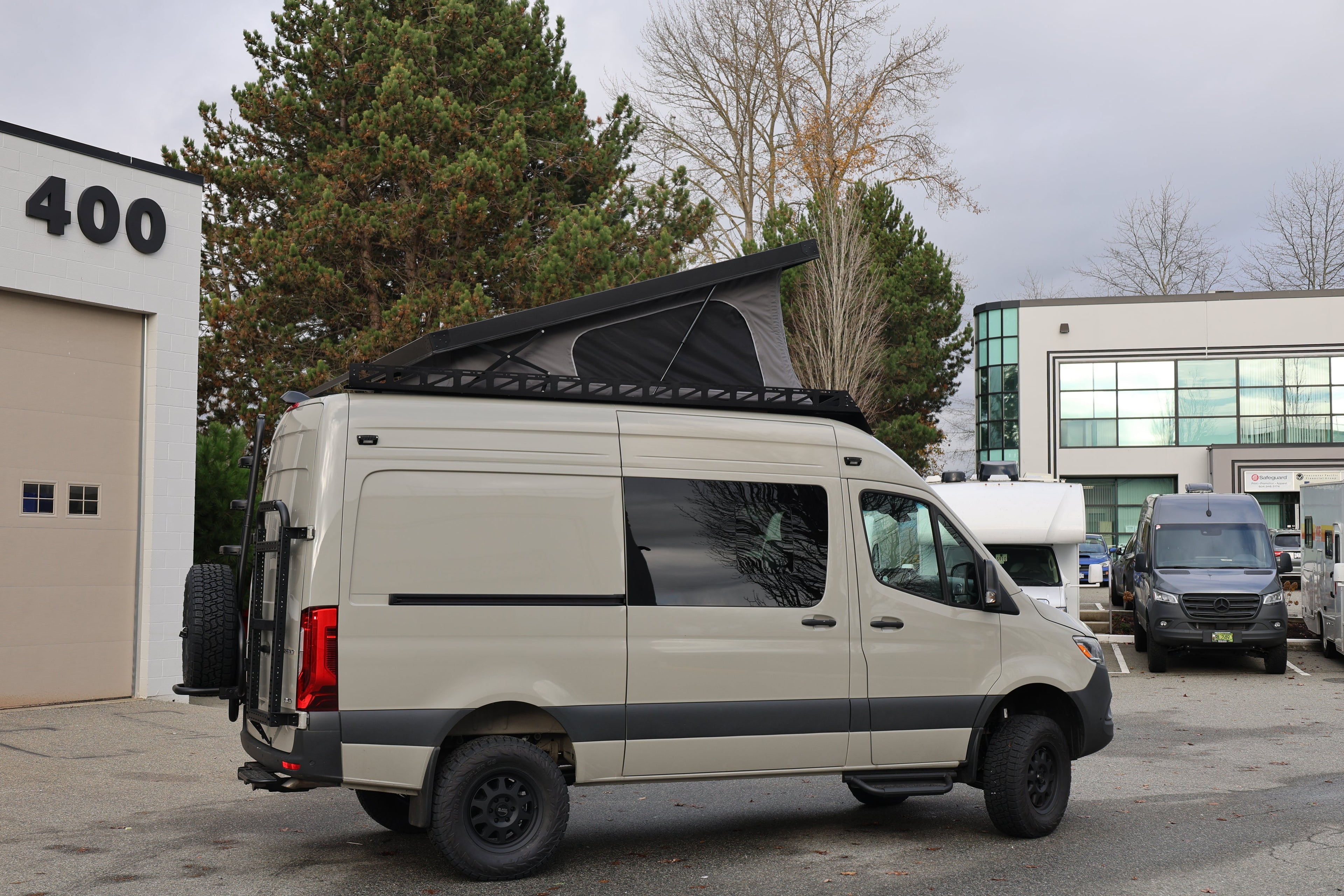

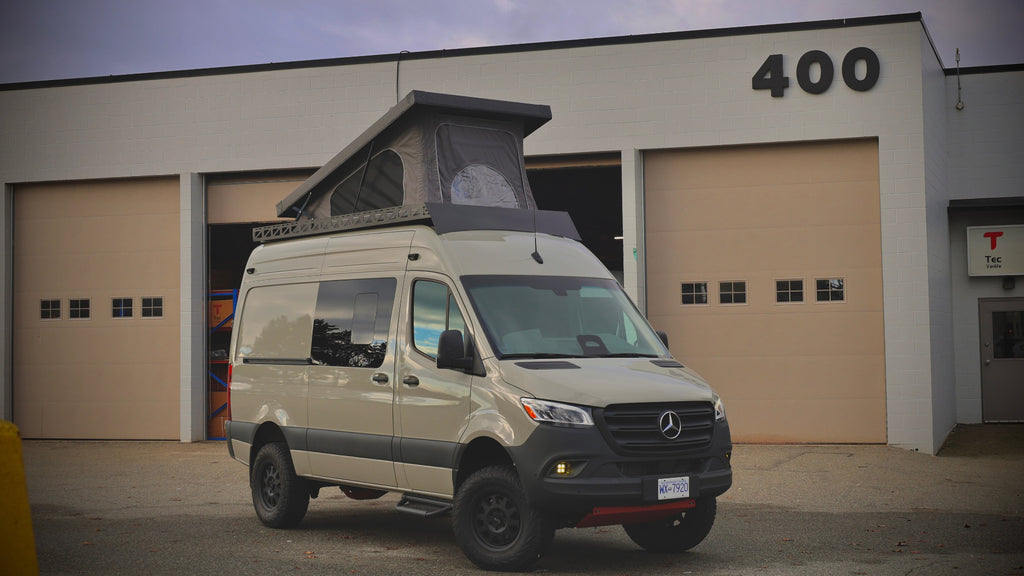

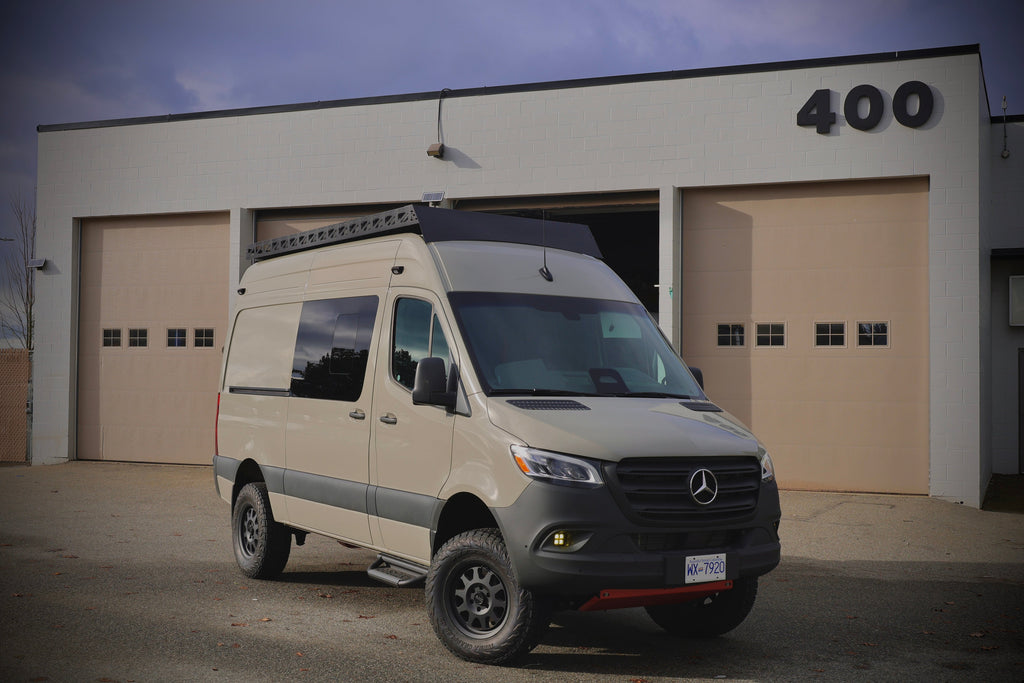

Sprinter Carbon Fiber Roof-Top Tent System

• Low profile ultra-light weight Carbon Fiber Roof Top Tent
• Weighs approx 150lbs - INCLUDING the roof-rack!

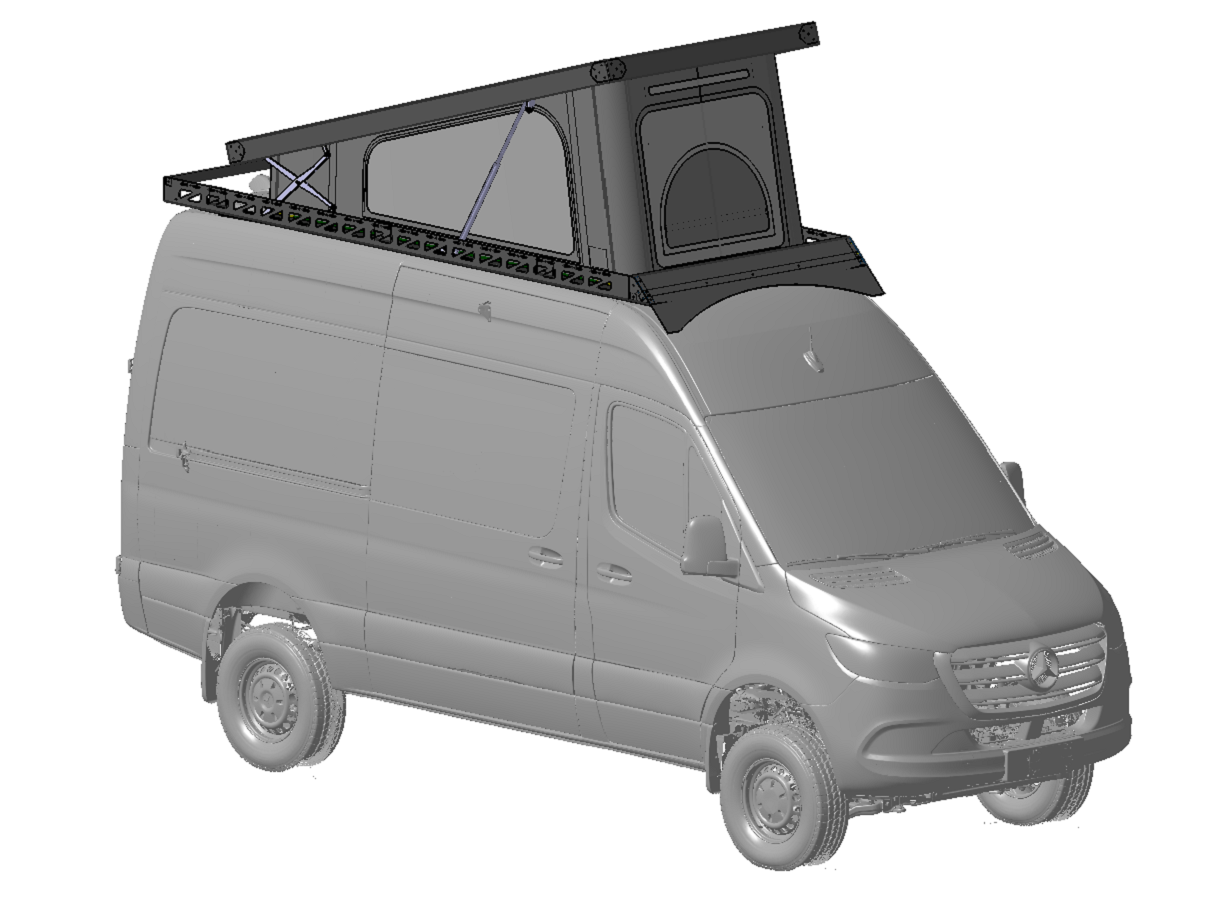

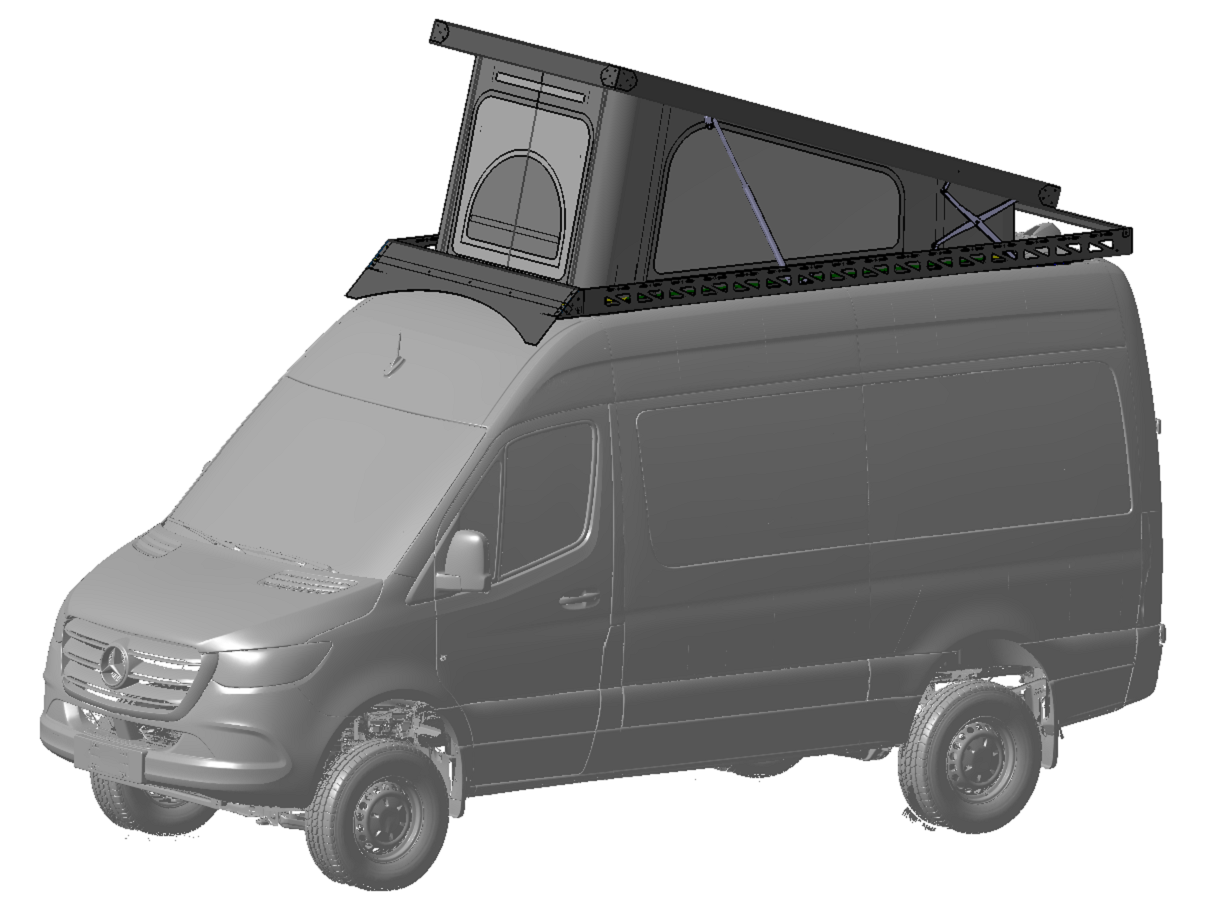

• Fully integrated carbon fiber top/bottom shells are supported by a purpose-built low-profile integrated roof rack - the tent and roof rack are one complete system - why?
• Super fast and easy installation - the entire unit bolts directly onto the roof rails - no drilling

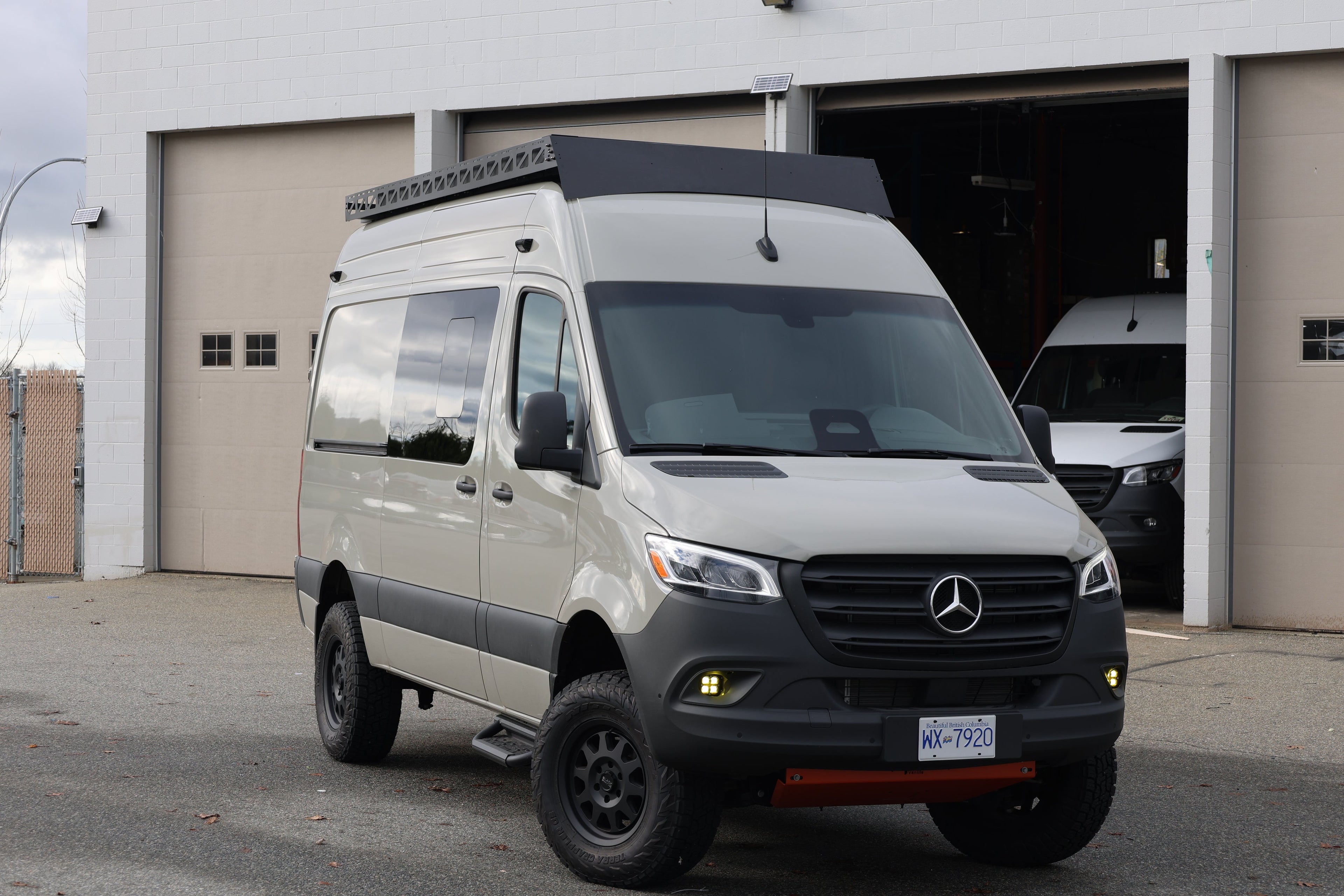

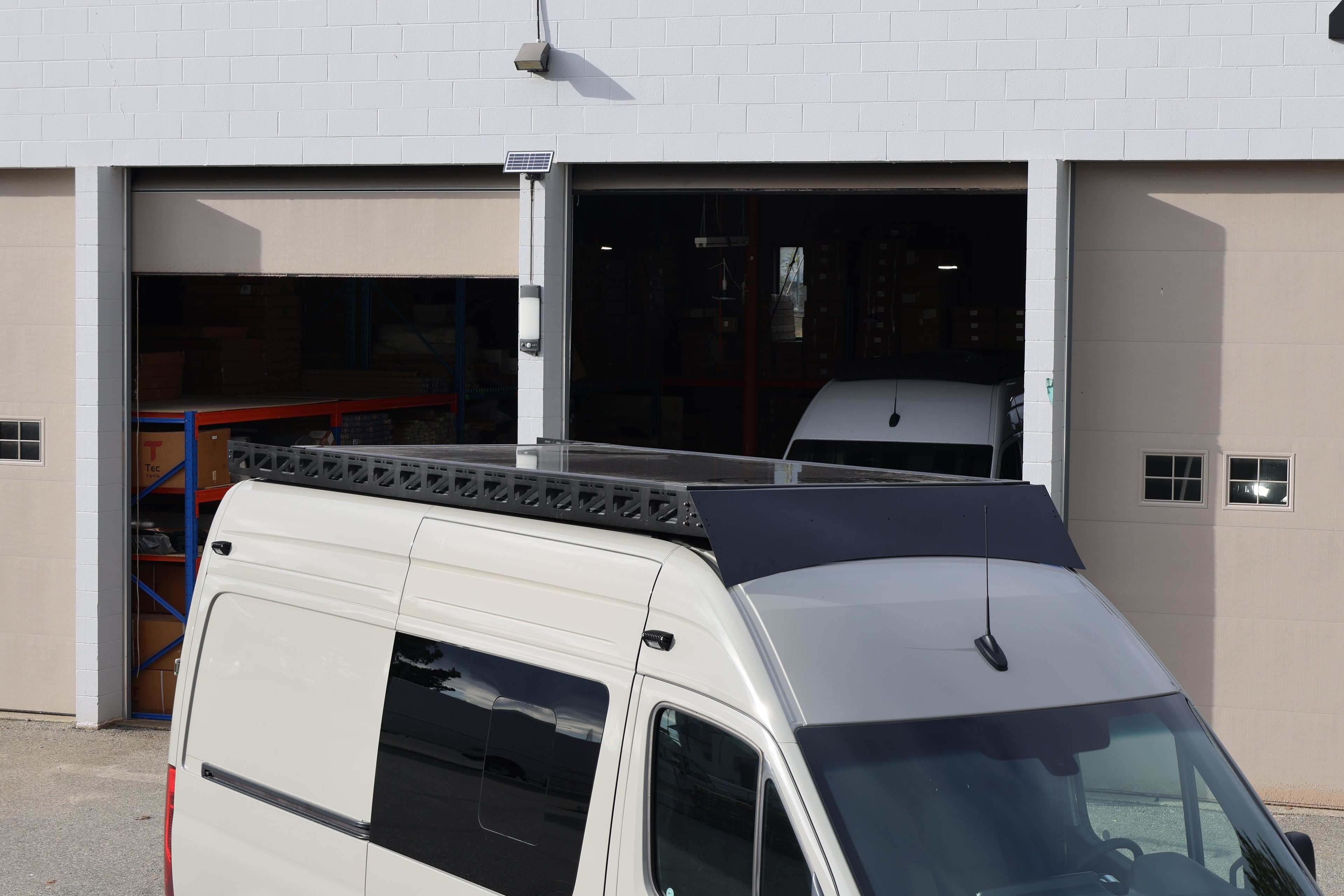

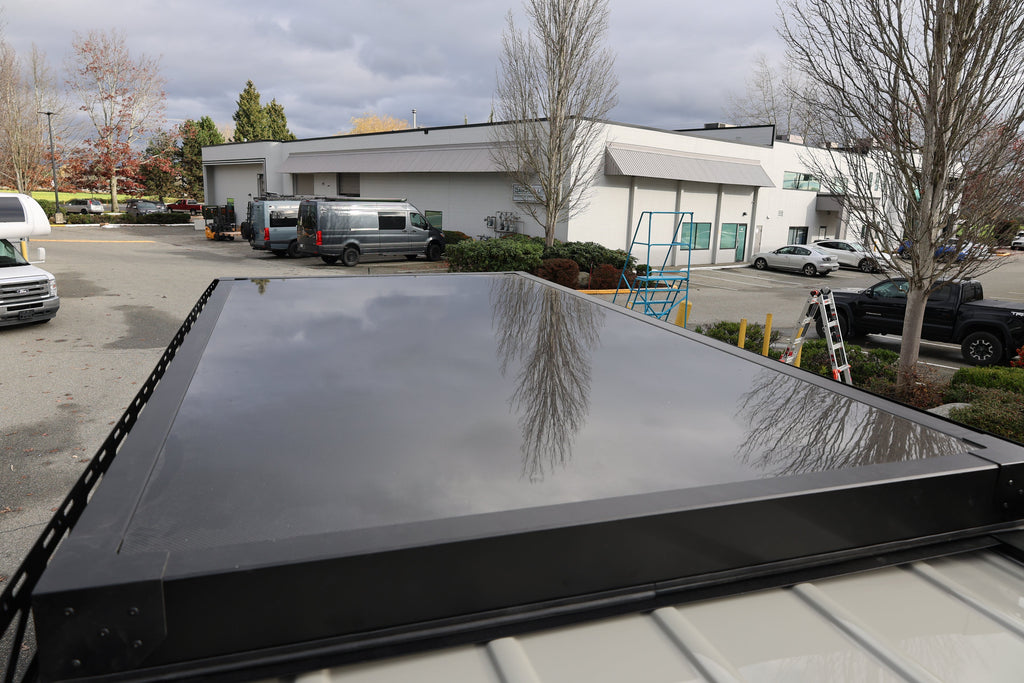

• Sleek, flush finish when closed
• Lightweight design does nto
• Roof rack will support awnings

• Opening and access is exclusively via the inside of the van
• This requires a cut-out behind the A pillar where a Fan would mount
• Entrance opening size  - approximately 17.7" x 27.6"

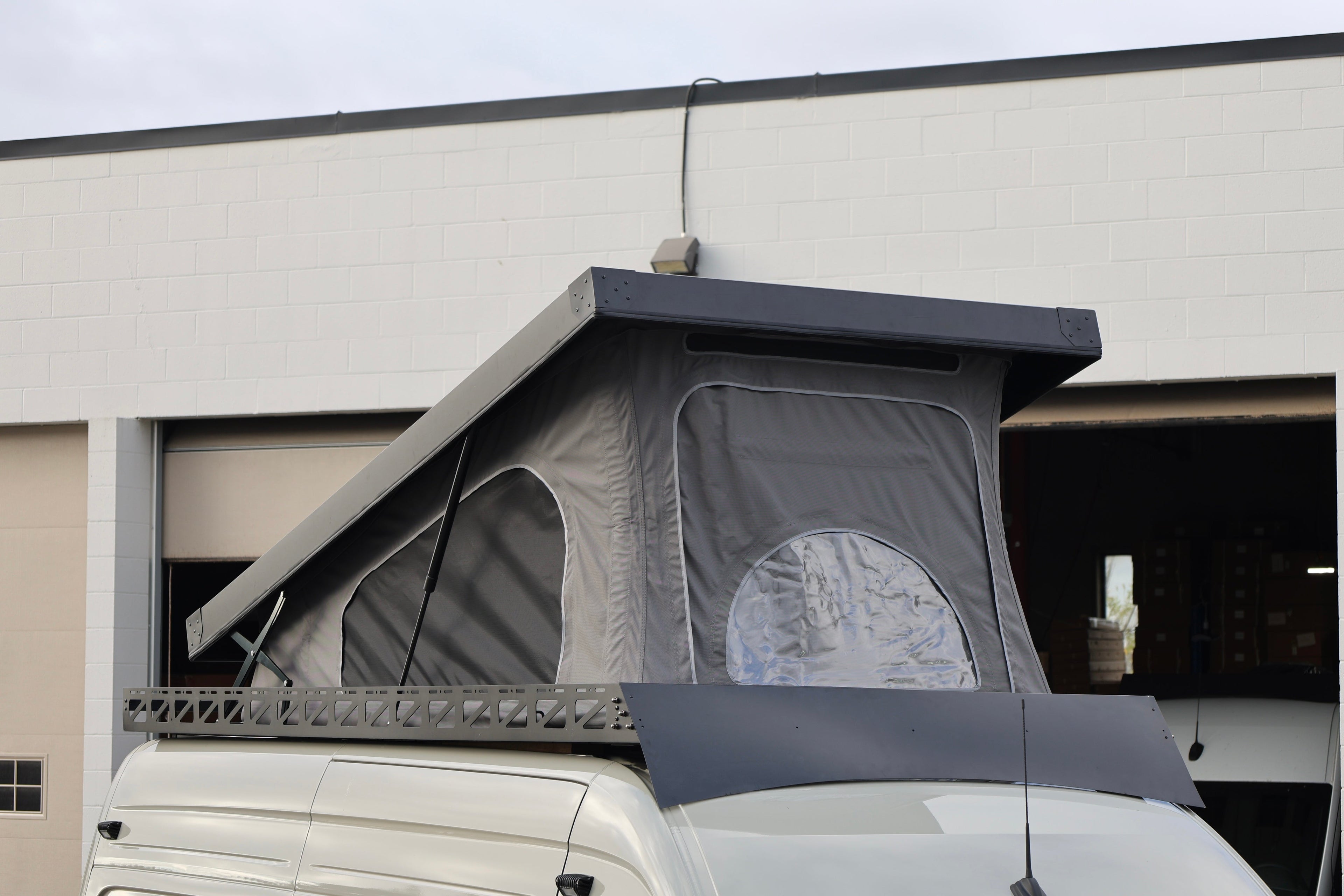

• Patented Mold & Moisture resistant fabric walls
• Removable insulation layer for 3-4 season camping
• Supportive, lightweight gel & memory foam mattress included
• Built-in LED lighting system
• USB & C integrated chargers

Why This Tent Is Different

• Ultra-Lightweight Carbon Fiber Composite – Built from aerospace-grade materials for maximum strength and minimal weight
• Removable Insulation Curtain Layer – Add it for winter warmth, remove it for summer airflow
• Patented Mold + Moisture-Resistant Fabric – Eliminates condensation issues common in rooftop tents
• Opens From Inside Your Van – Convenience and stealth, no climbing outside at night
• No Exterior Straps or Latches – Hidden internal sub-frame guides the tent into a smooth fold every time
• “Magic Mattress” – A next-generation comfort system engineered specifically for rooftop sleeping ergonomics

Technical Features & Specifications

Roof Rack Dimensions

• Rack Width:
• 153 cm / 5 ft ¼ in
• Sprinter 144 Rack Length:
• 342 cm / 134.5 in
• Sprinter 170 Rack Length:
• Same width as Sprinter 144
• 442cm / 174 in

Tent Interior Dimensions

• Interior Width:
• 130 cm / 51 in
• Interior Length:
• 252.5 cm / 99.5 in
• Front Interior Height:
• 94 cm / 37 in
• Rear Interior Height:
• 36 cm / 14 in

Tent Exterior Dimensions (Tent Body)

• Width:
• 147.5 cm / 58 in
• Length:
• 271 cm / 106.75 in

Entry Hatch Opening

• Opening Size:
• 450 mm × 700 mm
• 17.7 in × 27.6 in

Weight

• Total System Weight:
• Approximately 150 lbs (depending on configuration)

---

Frequently Asked Questions

1. Can I add solar panels, fans, or roof accessories?
Yes. The system is fully compatible with solar panels, fans, light bars, and most roof-mounted accessories.

2. Can the tent support top rails or crossbars?
Yes. The system can accept top rails for mounting crossbars, storage boxes, traction boards, and more.

3. Can the gas struts be upgraded?
Yes. Stronger gas struts can be custom-ordered for additional rooftop load capacity.

4. How easy is installation?
Installation is straightforward. The entry hatch installs like a Maxxair fan, and the tent bolts directly to your roof rails like a roof rack.

5. Is a Ford Transit version coming?
Yes. A Transit-compatible version is scheduled for Q2 2026.

6. Can I open and close the tent from inside the van?
Yes. The entire mechanism is fully interior-operated for comfort, stealth, and safety.

7. What is the total system weight?
Approximately 150 lbs, depending on configuration.

8.  Is there a 170 length available?

There is only one size of tent, but there is a 170-length roof rack available

9. Can the tent be mounted rear facing?

No, the tent is integrated with the faring.

10.  Can a Roof Top fan be mounted?

Yes.  The carbon can be cut and a roof-top fan mounted.
